At Robert Blake Designs, we take great pride in delivering high-quality and precise drawing information. Below, you will find a selection of our designs. Our projects encompass everything from wall removals to property extensions. We possess extensive experience in architectural design. We recognise that a project can change as a building contractor begins their work, which is why we provide essential support throughout the process, updating the drawings and designs as needed.

Our architectural and structural engineering drawings are created digitally using the most advanced CAD (computer-aided design) software. Our meticulous attention to detail and wealth of architectural design experience truly distinguishes us.

8 Sparrowhawk Way

The client wanted to increase their downstairs living space, we provided the design of a single storey rear extension. The materials were carefully chosen to match the existing dwelling, and the size and extent of the extension was maximised to create an open plan kitchen-diner which complimented the original build. Robert Blake Designs worked with the developments covenant control to obtain the relevant permissions.

8 Sparrowhawk Way – Existing Elevation 2

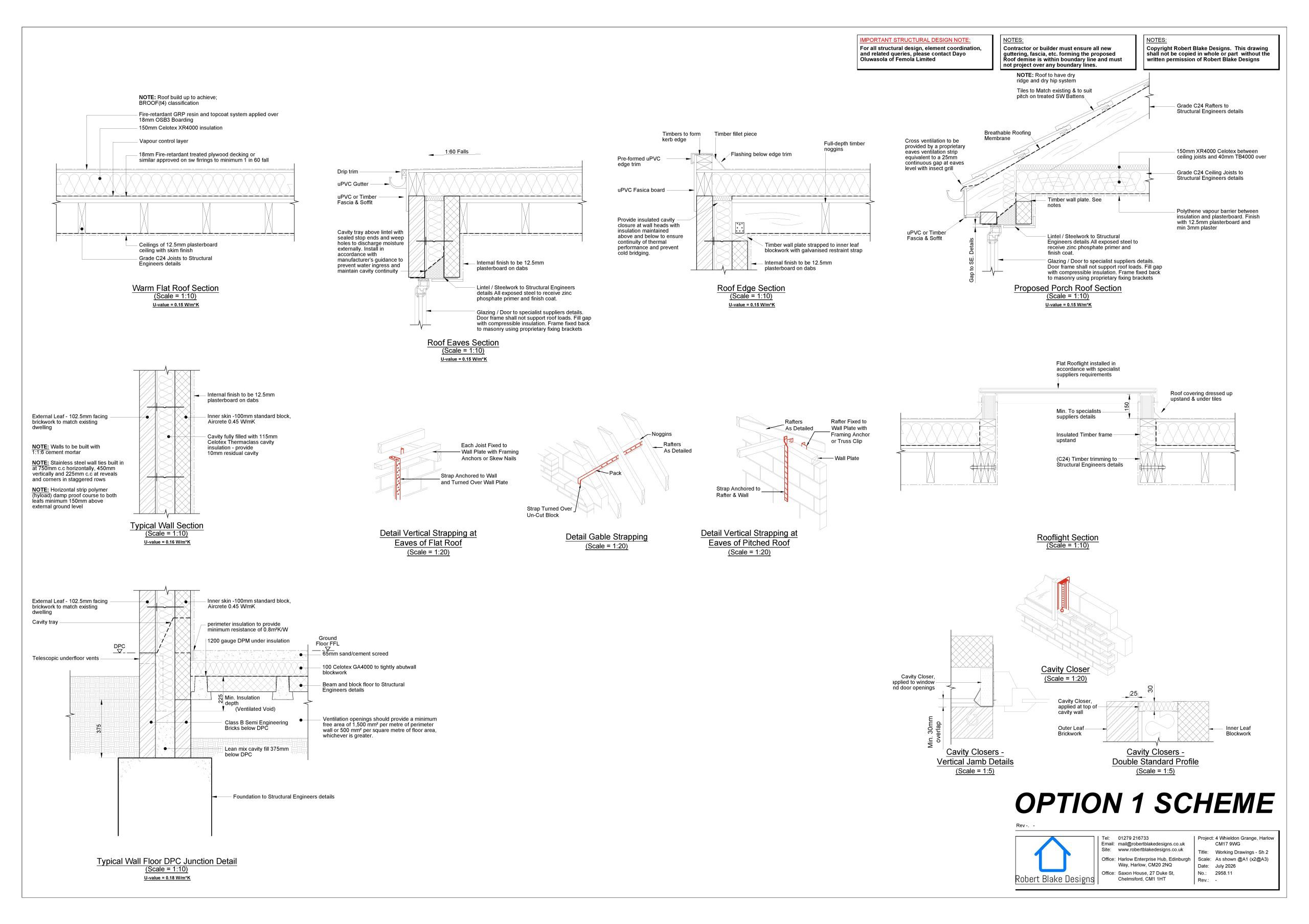

8 Sparrowhawk Way – Proposed Structural Details

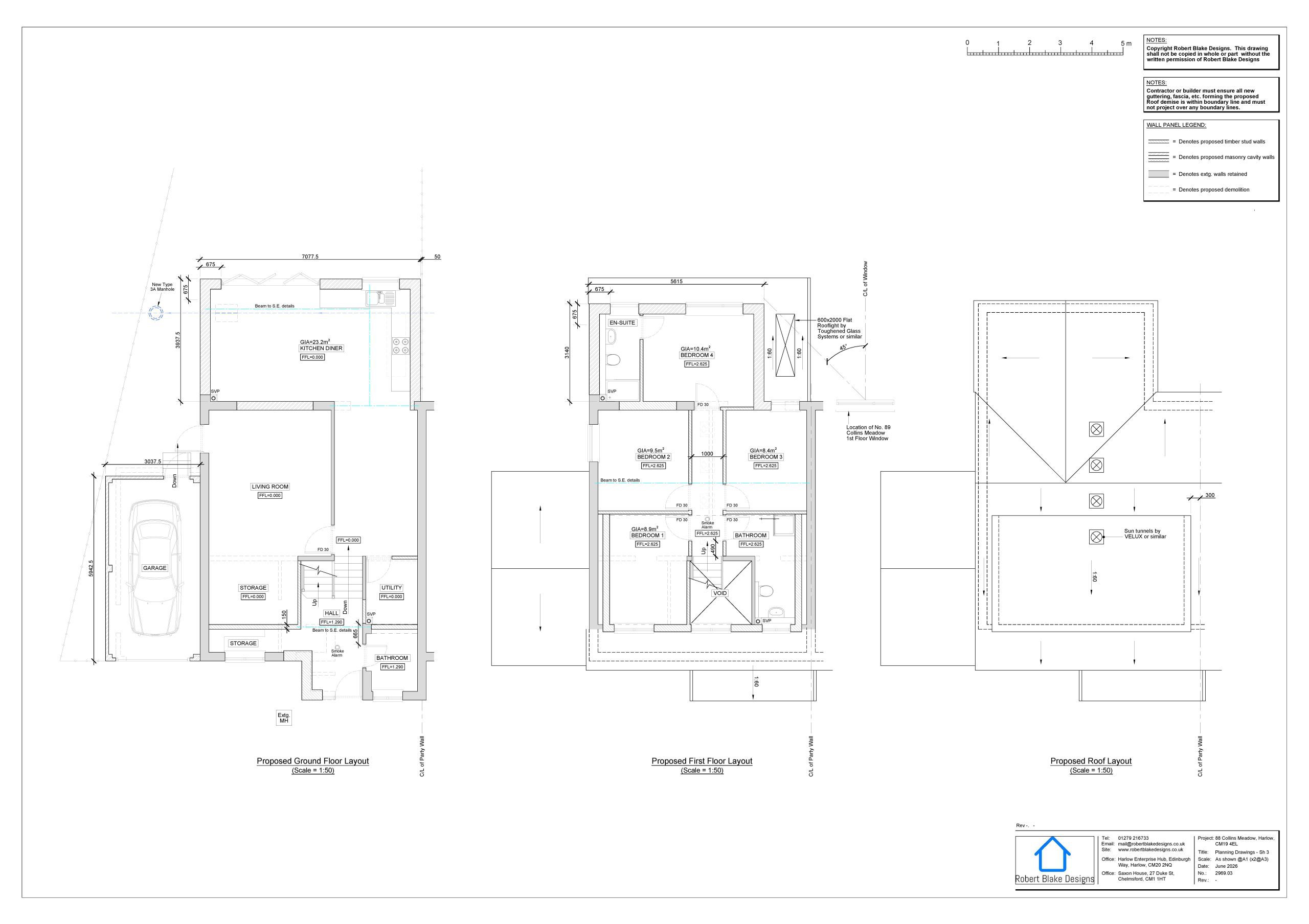

8 Sparrowhawk Way – Proposed Plan

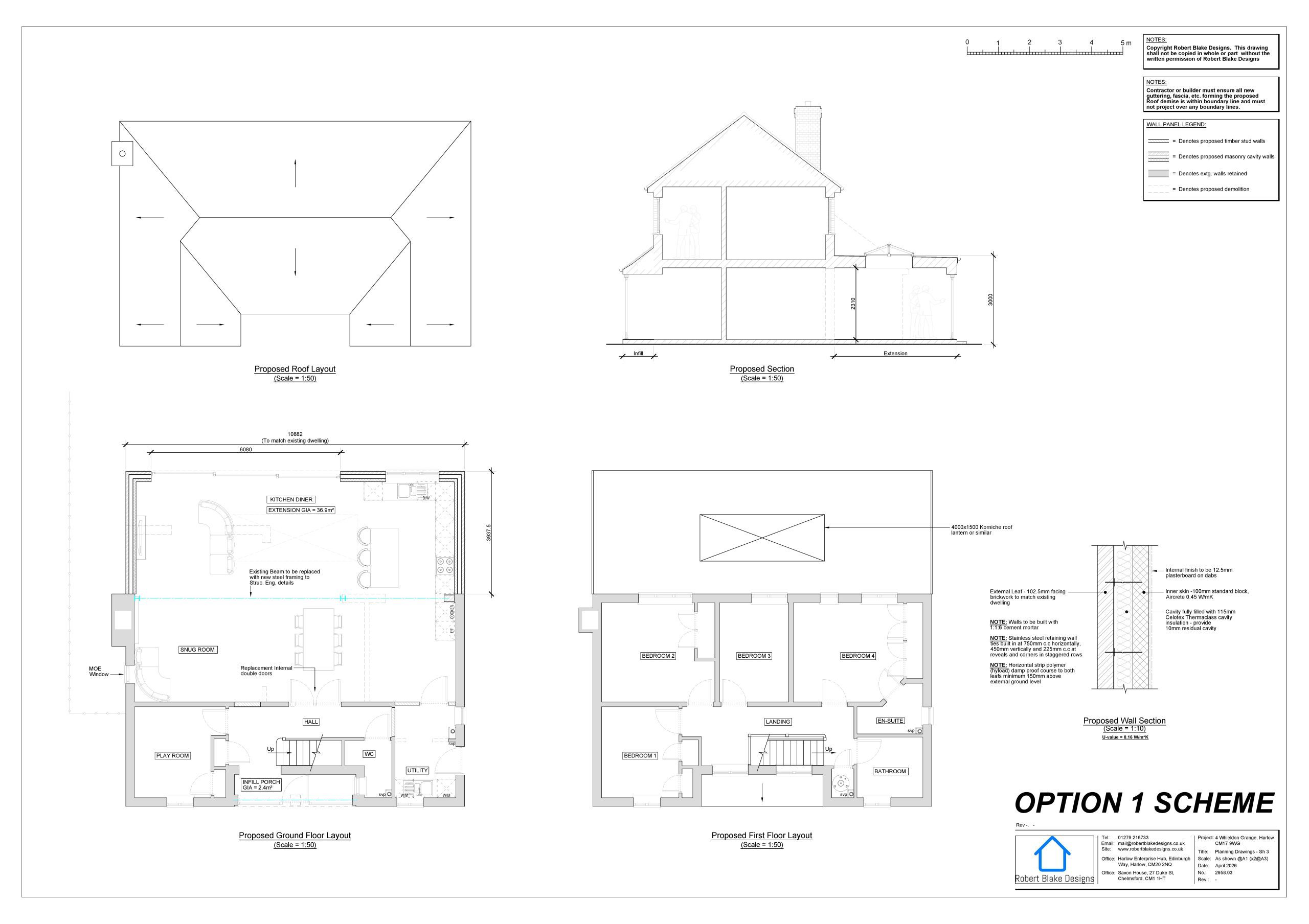

8 Sparrowhawk Way – Proposed Plan 2

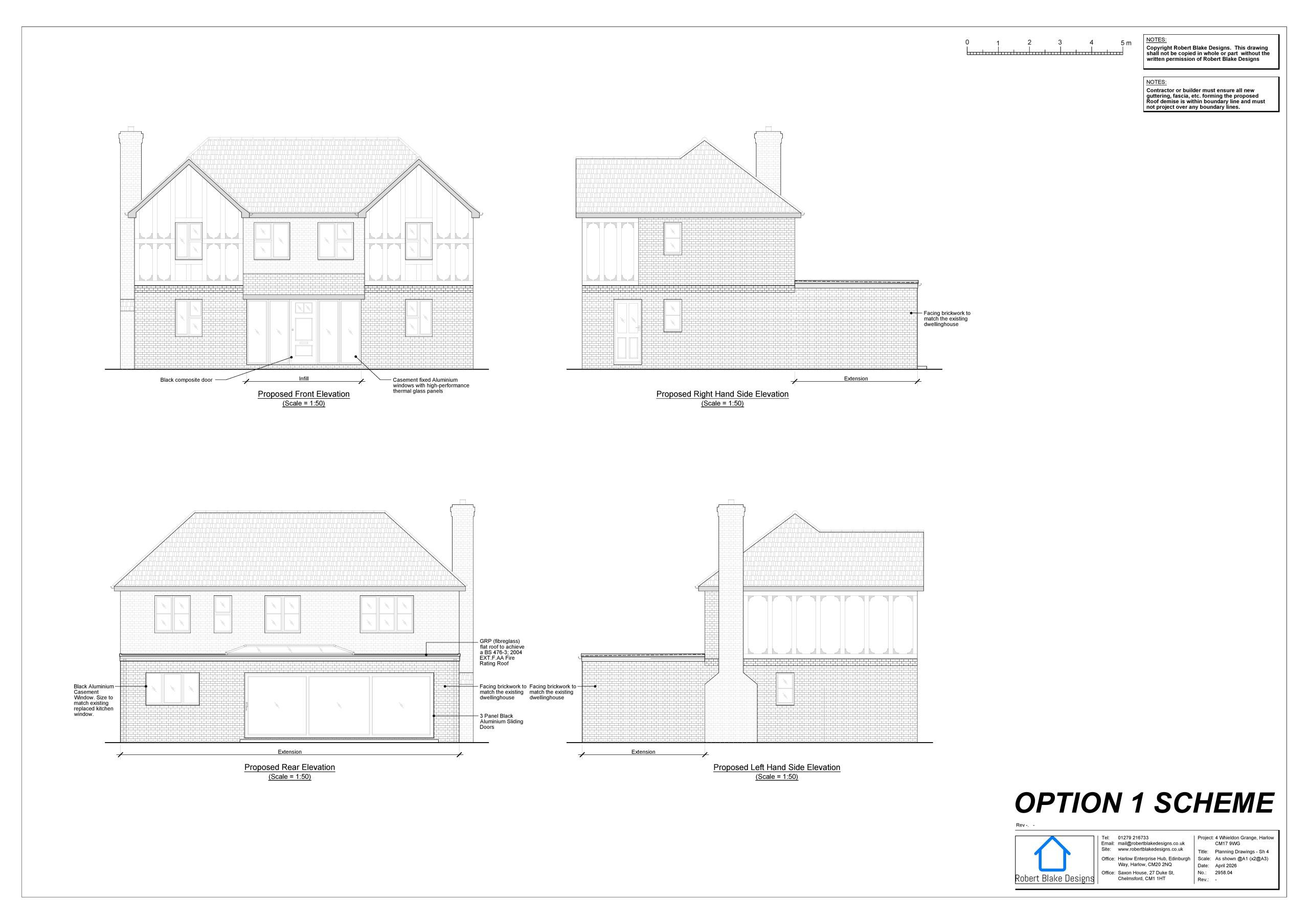

8 Sparrowhawk Way – Proposed Elevation

8 Sparrowhawk Way – Proposed Elevation 2

8 Sparrowhawk Way – Proposec Structural Plan

8 Sparrowhawk Way – Existing Plan

8 Sparrowhawk Way – Existing Plan 2

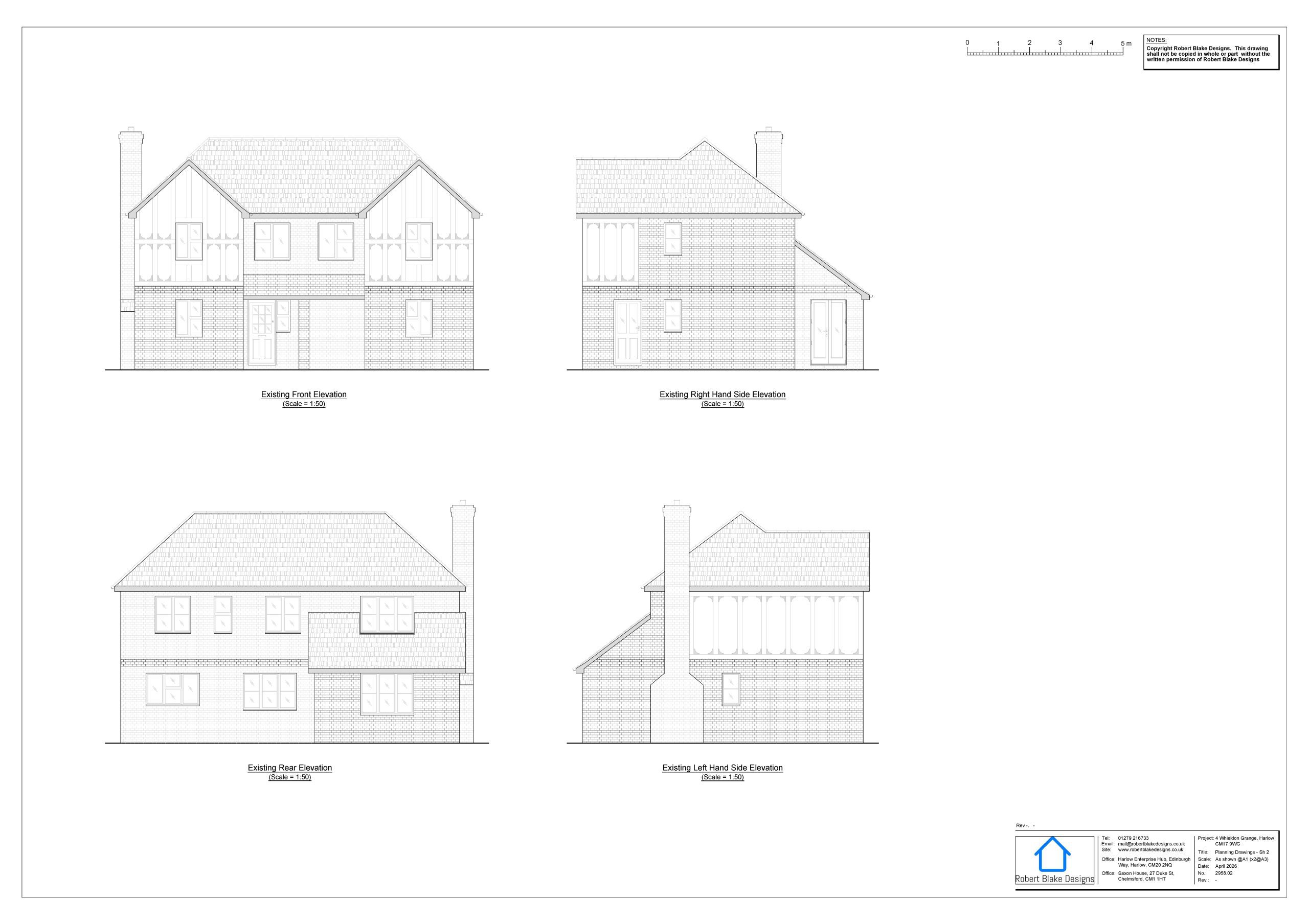

8 Sparrowhawk Way – Existing Elevation

12 Monks Close

We are pleased to announce the successful completion of a single-storey rear extension designed to enhance our client’s living space. This extension features an open-plan kitchen-diner, thoughtfully crafted to complement the original structure while maximizing the available space.

Careful consideration was given to materials, ensuring they match the existing dwelling for a cohesive aesthetic. Robert Blake Designs worked diligently with planning to secure all necessary permissions, ensuring compliance with local regulations.

The final result not only meets the clients’ needs but also adds significant value and functionality to their home.

12 Monks Close – Existing Plan

12 Monks Close – Structural Sections

12 Monks Close – Structural Drawing

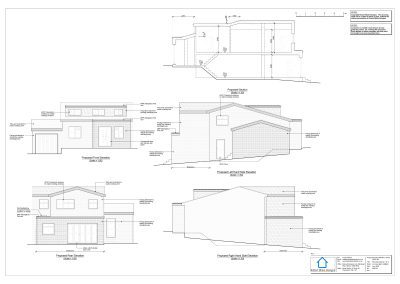

12 Monks Close – Proposed Elevation

12 Monks Close – Existing Elevation

12 Monks Close – Proposed Plan

1 Nafferton Rise

Our project at Nafferton Rise is two storey side extension. The side extension was constrained by the existing trees located in close proximity to the property. The foundation system was developed to safeguard the existing trees and protect the delicate roots. The build consisted of traditional cavity wall construction, supporting a first floor timber floor, and a tiled pitched cut roof. A wide opening was formed in the existing external wall of the house to create an opening plan kitchen-diner, the opening was formed by a steel box frame. A set of bi-fold doors were installed at the rear to maximum the natural light.

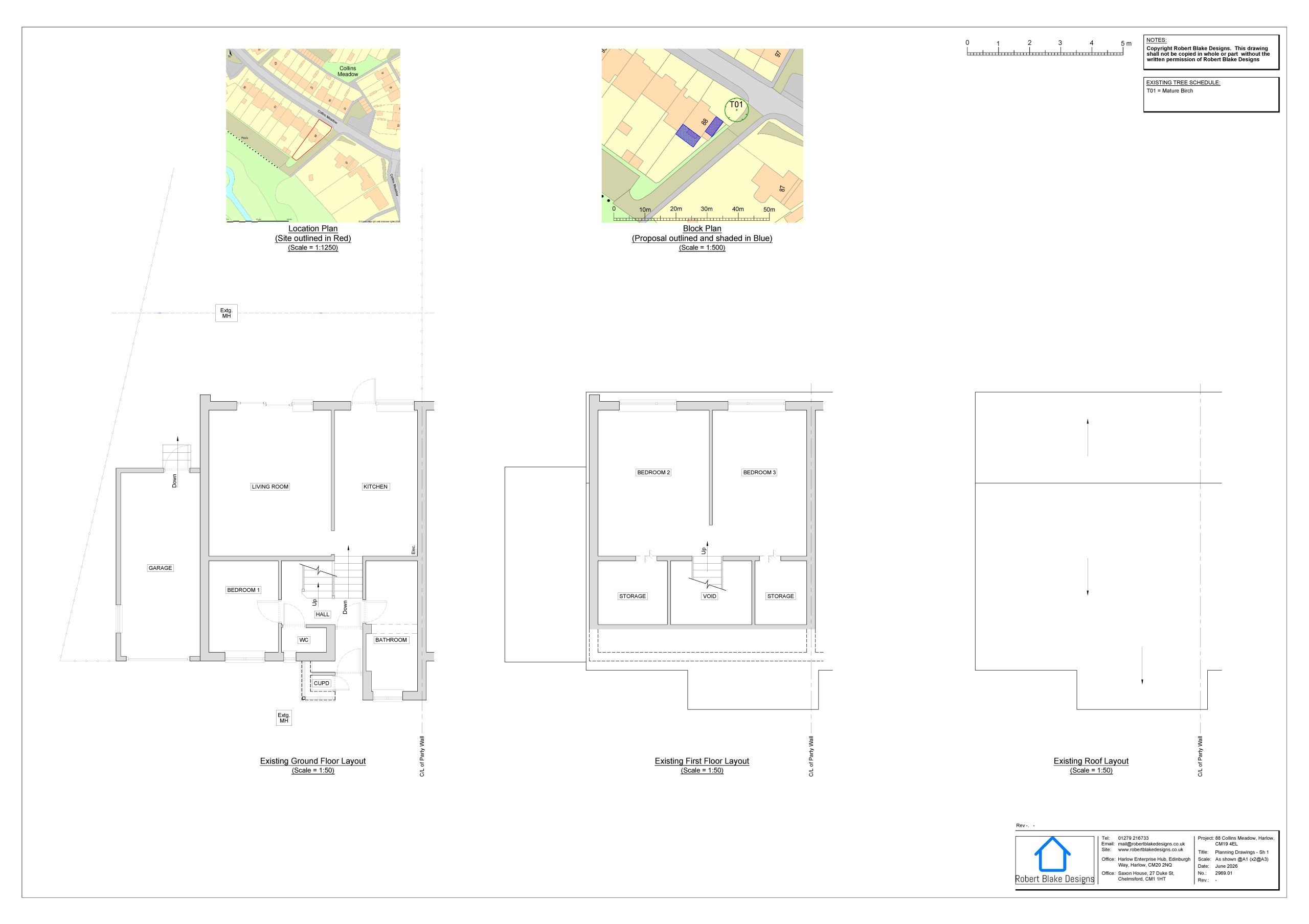

1 Nafferton Rise – Existing Ground Floor Plan

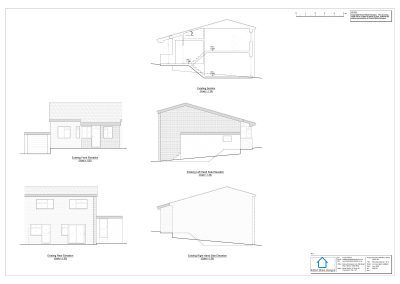

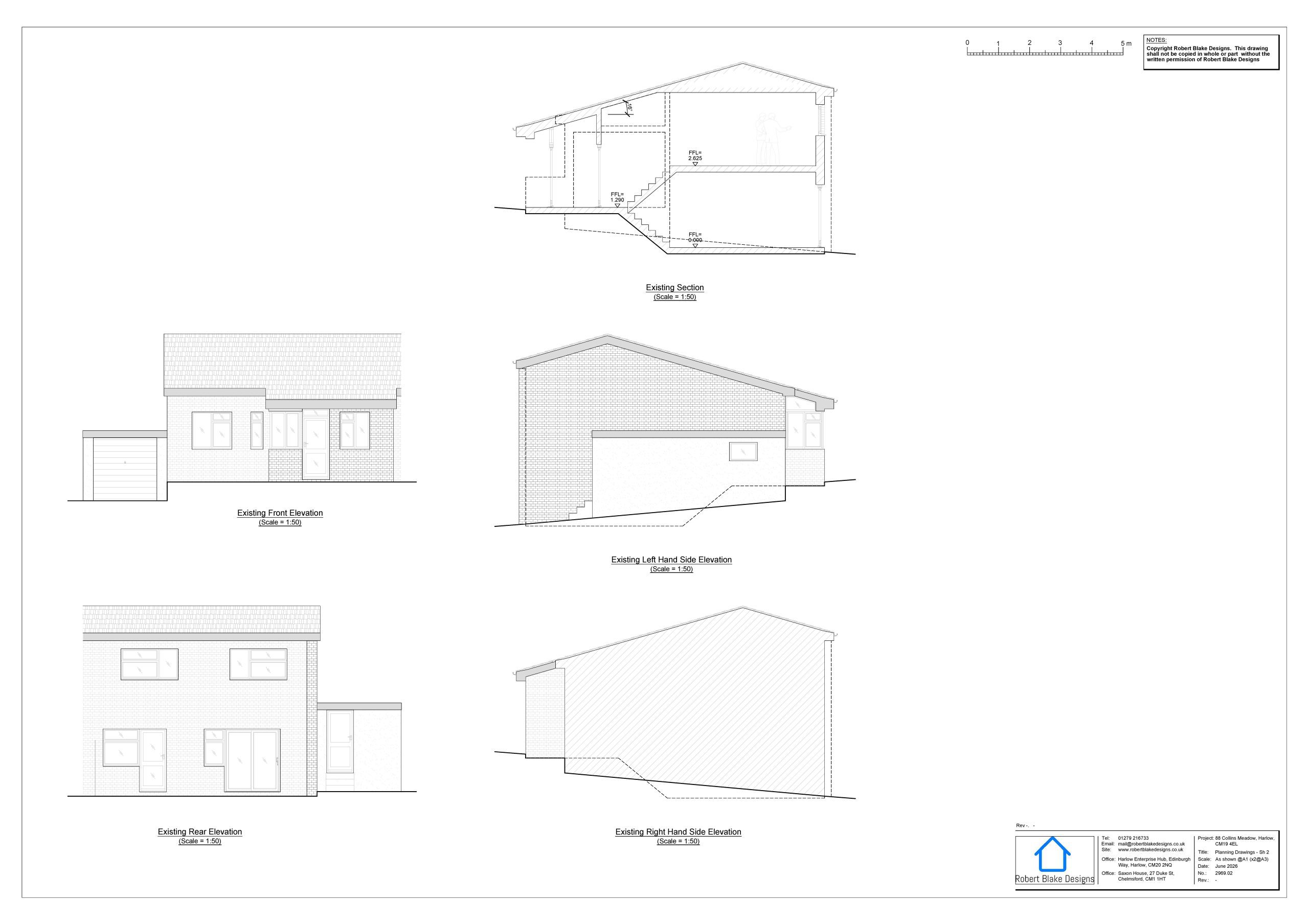

1 Nafferton Rise – Existing Elevation

1 Nafferton Rise – Existing Plan

1 Nafferton Rise – First Floor Plan

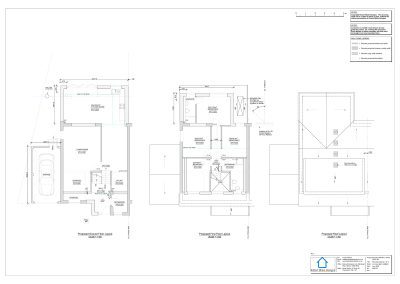

1 Nafferton Rise – Ground Floor Plan

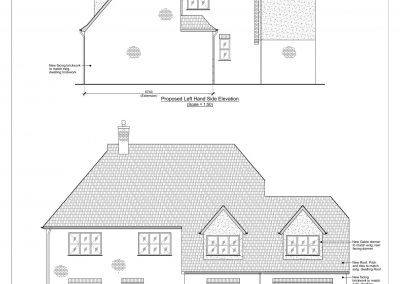

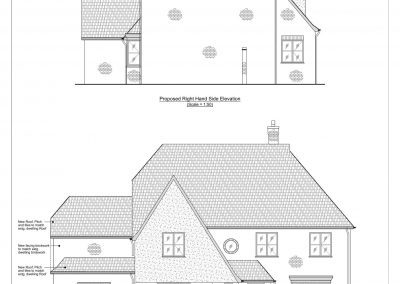

1 Nafferton Rise – Elevation Proposed 2

1 Nafferton Rise – External Finishes

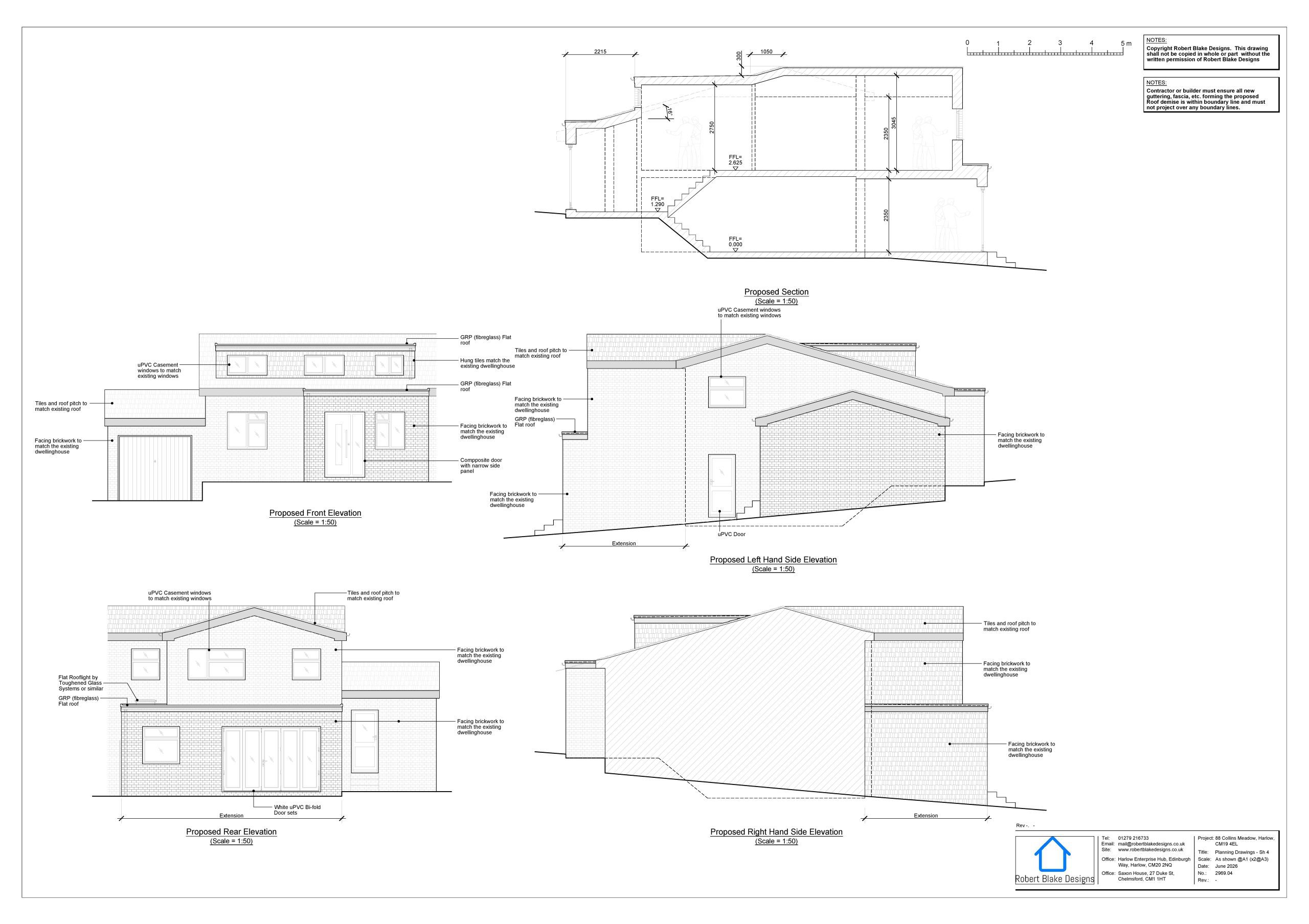

1 Nafferton Rise – Elevation Proposed

1 Nafferton Rise – Foundation Plan

1 Nafferton Rise – Structural Plan

Structural Drawing

12 Monks Close

2105_-10 E

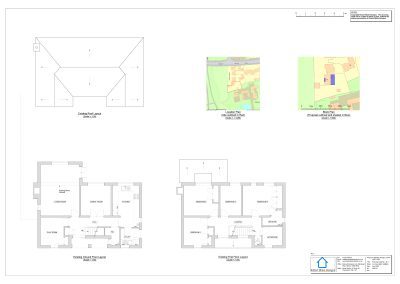

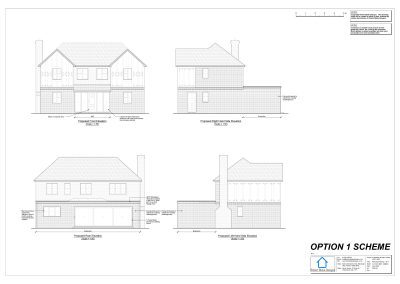

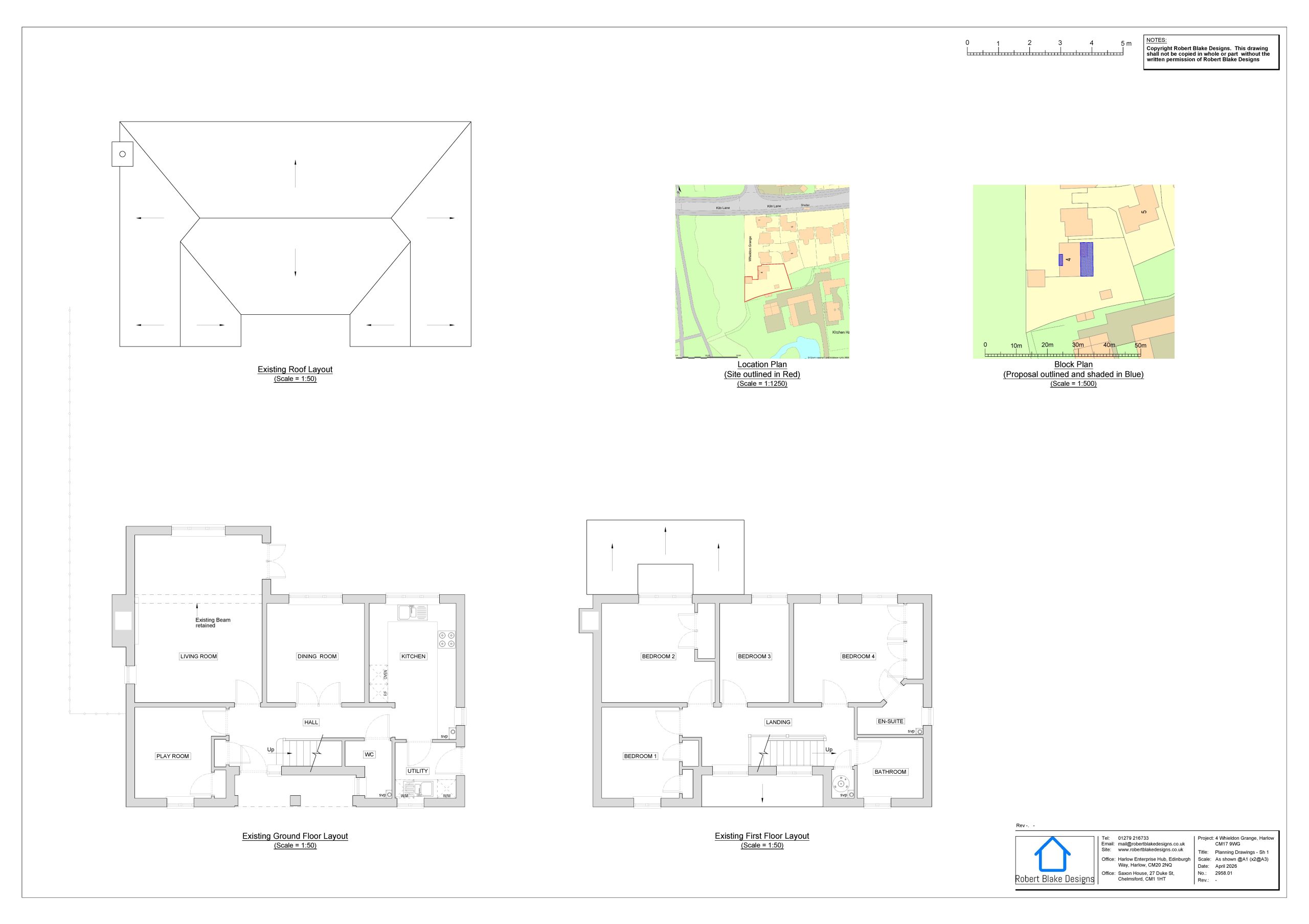

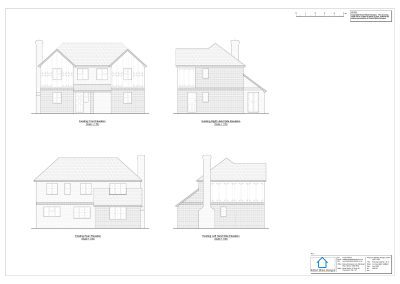

7 Nafferton Rise

The client at 7 Nafferton Rise wanted to introduce more useable living space to both floors of their property. We worked within the constraints of the site, and obtained planning on a two storey side extension. Enlarging the existing kitchen, and creating a large master bedroom upstairs. With the use of steel beams and framing we created wide open planning living space, maximsing light by the use of full height windows.
